Product Details

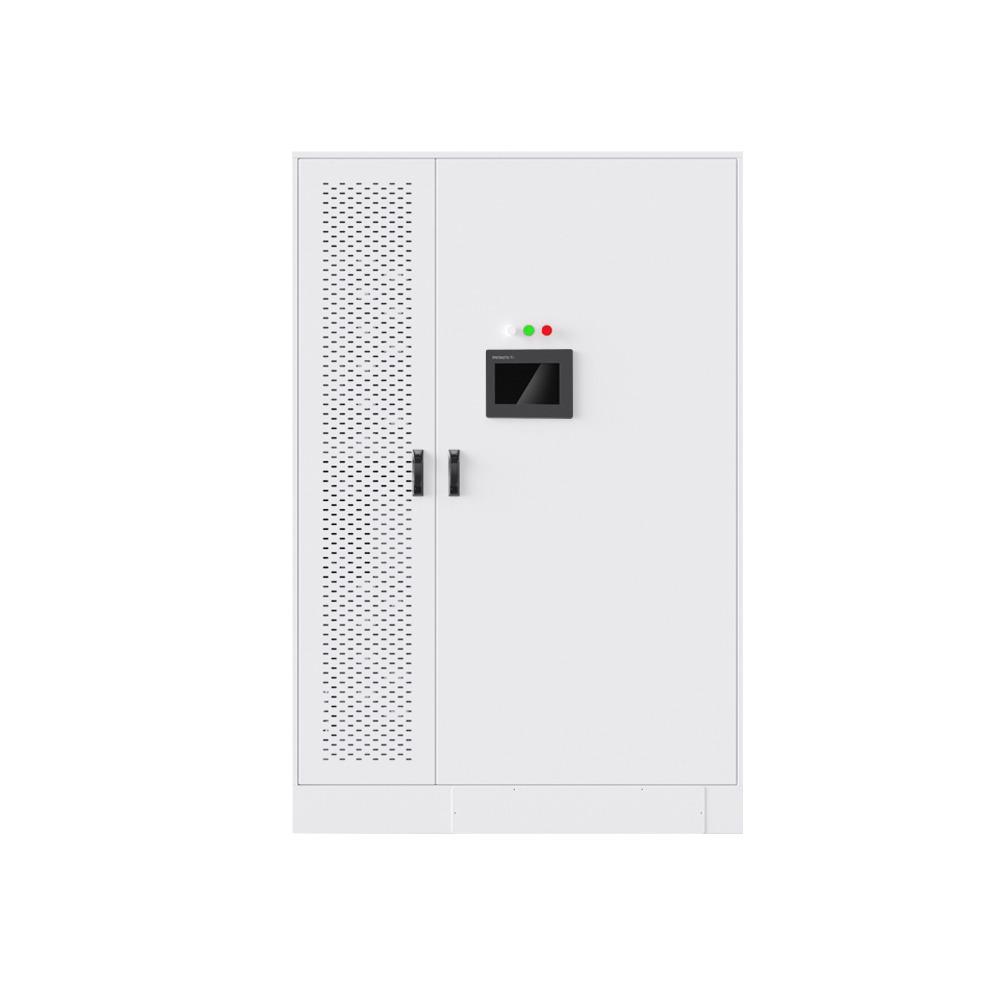

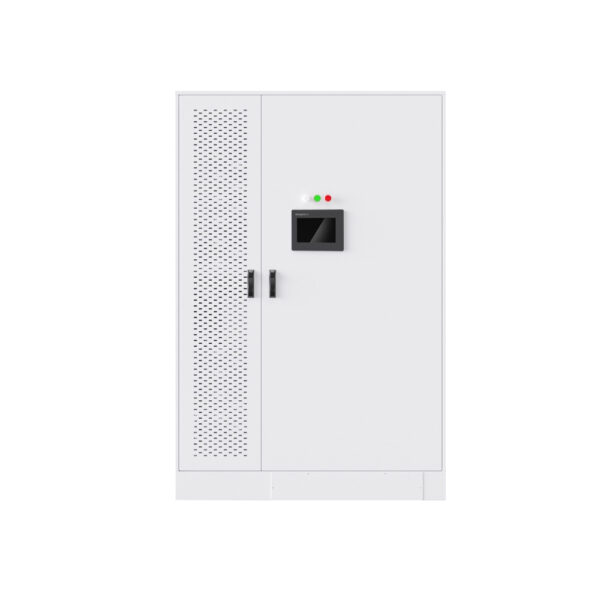

GTEF-832V/230kWh-R liquid-cooled energy storage integrated cabinet

1. The system integrates PCS, battery, BMS, EMS, thermal management, power distribution and fire protection, etc., and adopts a single string design to achieve zero loss tolerance in parallel; 2. The system has the functions of harmonic control, reactive power compensation, three-phase unbalance control, and at the same time has the functions of peak shaving and valley filling, peak regulation and frequency regulation; 3. Multiple sets of cabinets can be directly connected in parallel to realize the expansion of the energy storage system, plug and play.



Product Features
● Supercapacitor batteries
● Long cycle life time
● Millisecond level response speed of BESS controller, Multiple ESS control functionalities;
● Compatible communication interface with battery management system (BMS);
● Proprietary versatile control algorithms and logics;
● Hundreds of communication protocols are supported;
● Work with different renewable energy for smoothing the power generation;
● Anti-islanding operation;
● The other functions required by grid requirement;

Share With :

Facebook
Twitter
LinkedIn
INQUIRY

Description

Part Number
GTEF-832V/230kWh-R
DC battery parameters
Cell capacity
280Ah
Nominal voltage
832V
Operating voltage range 650~949V
Nominal energy
232.96kWh
Rated charge/discharge current
 140A
Rated charge/discharge power 100kW
AC grid-connected parameters
Rated output power
100kW
Overload capacity
1.1 times long-term, 1.2 times 1min
Rated voltage AC 400V
Rated output current 145A
AC access mode Three-phase four-wire
Grid frequency range 50Hz/60Hz ± 2.5Hz

AC off-grid parameters
AC off-grid voltage AC 400V
AC off-grid frequency 50Hz/60Hz
Off-grid output THDU
≤3% (linear load)
Other parameters
Auxiliary power supply AC 380V/AC 220V
Cooling method Liquid cooling
Communication method CAN, RS485, TCP/IP
Ingress protection IP23
Dimensions 1413mmx1289mmx2164mm (WxDxH)
Dimensions(WxDxH) 3740*2400mm
Mount Options On floor
