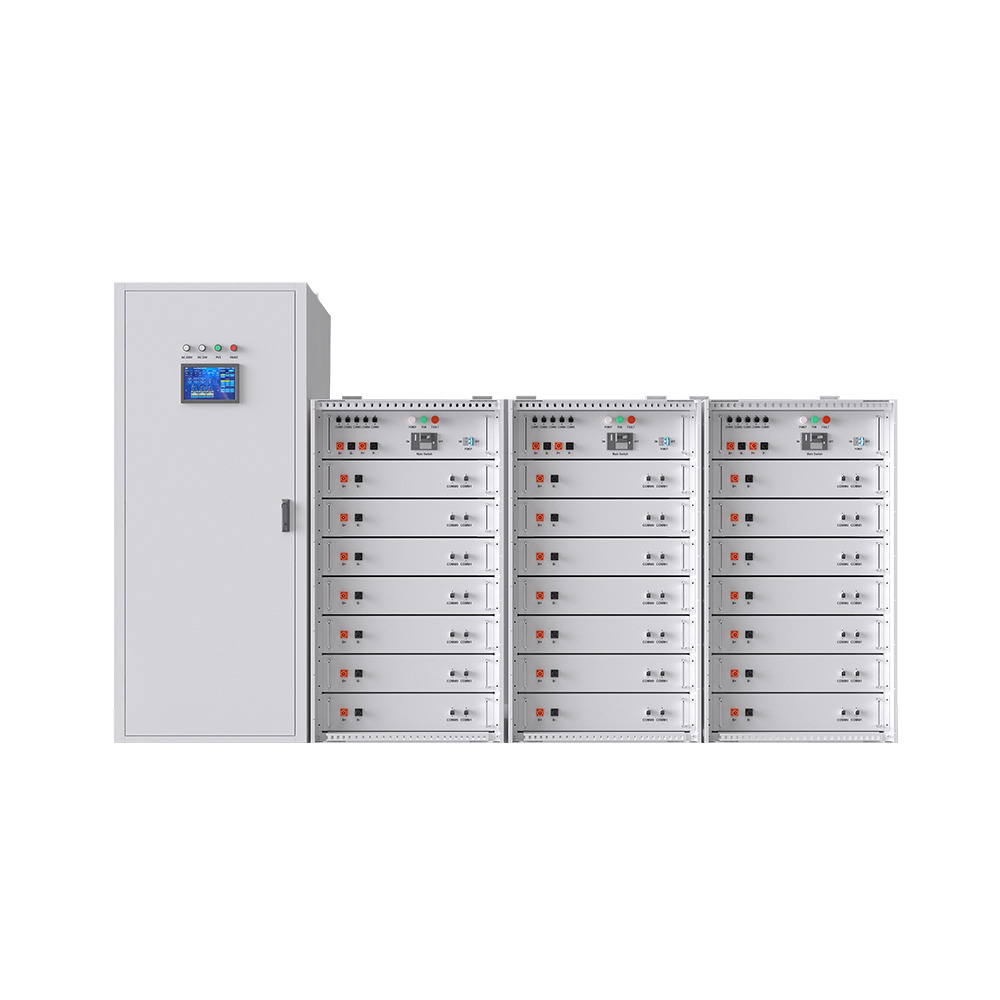

GTEM-700V250KW-264KWH-R High Voltage ESS

The GTEM-700V250KW-264KWH-R system is designed to provide high-power independent micro-grid solution, which can combine various input power sources, improve the reliability of power supply.



Product Features
● Supercapacitor batteries
● Long cycle life time
● Millisecond level response speed of BESS controller, Multiple ESS control functionalities;
● Compatible communication interface with battery management system (BMS);
● Proprietary versatile control algorithms and logics;
● Hundreds of communication protocols are supported;
● Work with different renewable energy for smoothing the power generation;
● Anti-islanding operation;
● The other functions required by grid requirement;

Share With :

Facebook
Twitter
LinkedIn
INQUIRY

Description

Part Number
GTEM-700V250KW-264KWH-R
Nominal Voltage
699.3Vd.c
Max. Charge Voltage
784.35Vd.c
Discharge Cut-off Voltage
567Vd.c
Nominal Capacity 378Ah
Energy Storage
264.54kWh
Max Continuous Charge Current
 360A
Max Continuous Discharge Current
 360A
Max. Continuous power
250kW
ESR/AC@1KHZ 50% SOC
<40mΩ
Weight
2500kg
Communication CAN, RS485, MODBUS TCP
Dimensions(WxDxH) 3740*2400mm
Mount Options On floor
