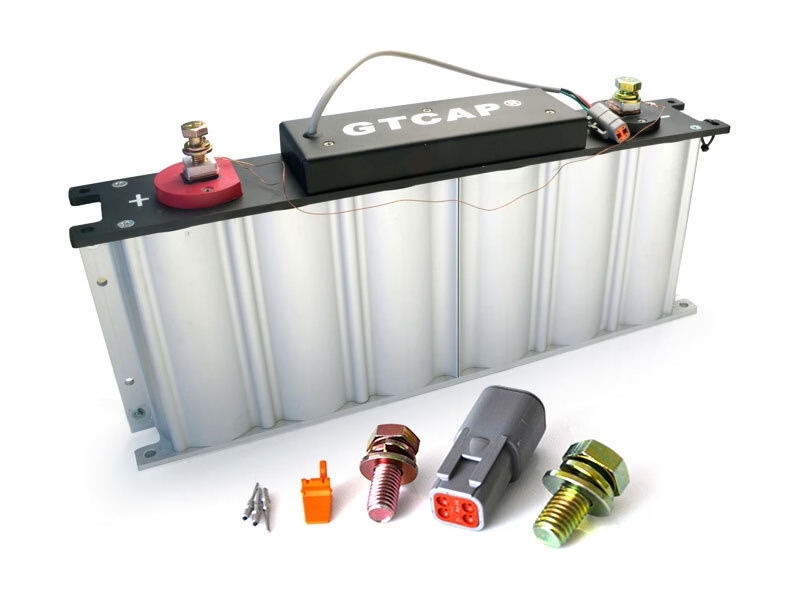

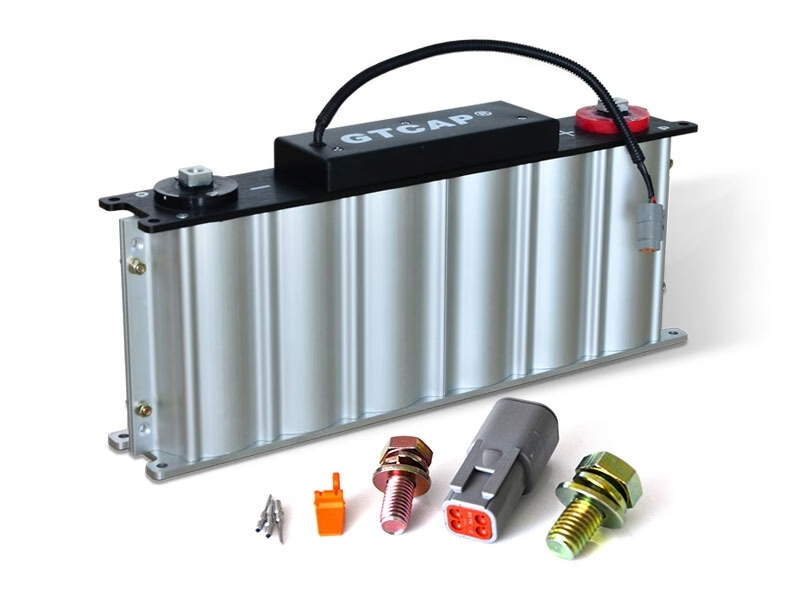

SM 48V 165F-EDLC Super Capacitor Module

Highest power performance, low ESR and long cycle life ultra capacitor module.Especially designed for electric vehicles, fork lifts, cranes, telecommunications, railway transportation and engine start.



Product Features
● Supercapacitor cells
● Long cycle life time
● DoD up to 100%
● Safest technology
● Highest energy transfer efficiency
● High discharge current
● Low self-discharge
● Low maintenance
● Environment friendly

Share With :

Facebook
Twitter
LinkedIn

Description

Part Number GTSM-48V165FUS
Nominal capacitance 125 F
Capacitance tolerance -10%~~+20%
Rated voltage 48V
Maximum absolute voltage 51V
ESR, DC 5 mΩ
Maximum continuous current (ΔT=40℃) 100 A
Maximum peak current, 1 sec. 2,275 A
Maximum leakage current (after 72hrs @ 25℃) 5.2 mA
Operating temperature range (Cell case temperature) -40℃ to +65℃
Storage temperature range(Storage uncharged) -40℃ to +70℃
Power terminals M8 Screw Hole
Negative Terminal M10 Screw Hole
Recommended torque – terminal 20/30 Nm
Vibration specification SAE J2380

ISO16750-2, T14

Shock specification SAE J2464
Colling Natural Convection
Weight 20kg
Environmental protection IP65
Internal temperature sensor NTC Thermistor
Cell voltage monitoring Overvoltage Alarm
